ARM-Tiny6410-裸机开发-Led_Button_Timer

Posted on Edited on In

Overview

本文针对tiny6410裸机程序中的Led、Button、Timer、Interrupt 等控制程序进行分析，部分代码由国嵌相关代码修改得到。
（PS:需安装好jlink和rvds2.2，对于代码中所有include到的文件可以在Reference中找到）

Led

电路图

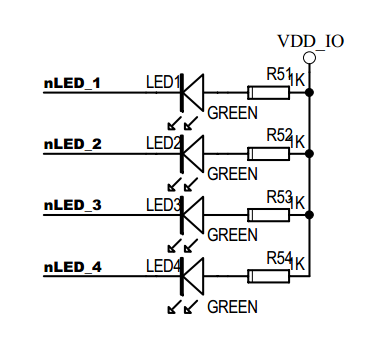

Tiny6410核心板的LED1、LED2、LED3、LED4分别连接到了GPK4、GPK5、GPK6、GPK7。电路图如下：
LED电路图

led.h

使用 #ifndef LED 来避免重复的包含文件（每个头文件都建议加上）
module_cfg.h 里进行了模块名的定义 #define LED
使用#ifdef LED判断是否已经定义模块，已经定义则使宏定义和函数声明有效（配合module_cfg.h可以方便的关闭对应的模块，减少不必要的编译）

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
#ifndef __LED__
#define __LED__
#include "module_cfg.h"
#ifdef LED

/**************Macro Definition**********/
#define LED1_ON   ~(1<<4)
#define LED2_ON   ~(1<<5)
#define LED3_ON   ~(1<<6)
#define LED4_ON   ~(1<<7)

#define LED1_OFF   (1<<4)
#define LED2_OFF   (1<<5)
#define LED3_OFF   (1<<6)
#define LED4_OFF   (1<<7)
#define LEDALL_OFF (0xf<<4)

/**************Declare Function**********/
void LedDelay(int times);
void LedPortInit(void);
void LedRun(void);



#endif

#endif

led.c

LedDelay 只为简单的延时函数，需要准确的计时可查看Timer章节
LedPortInit 为初始化对应的GPIO为输出模式（翻查s3c6410芯片手册的GPK寄存器可知）
LedRun 为流水灯程序，根据LED电路图可知：IO输出为低电平时，LED点亮；IO输出为高电平时，LED熄灭

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
#include "module_cfg.h"
#ifdef LED
#include "def.h"
#include "led.h"
#include "gpio.h"
/*************************************************************************
 * ***************************延时函数************************************
 * ***********************************************************************/
void LedDelay(int times)
{
    int i;
    for(;times>0;times--)
      for(i=0;i<3000;i++);
}

/*************************************************************************
 **********************初始化连接LED灯的管脚资源**************************
 * @ 通过将GPIO_BASE强制转化为(volatile oGPIO_REGS*)型的指针可以很方便
 * 的访问各个GPIO寄存器的值，这种方法比通过使用寄存器地址的宏定义访问
 * 寄存器单元更加规范和科学。
 * ***********************************************************************/
void LedPortInit(void)
{
    u32 uConValue;
    uConValue = GPIO->rGPIOKCON0;
    uConValue &= ~(0xffff<<16);
    uConValue |= 0x1111<<16;
    GPIO->rGPIOKCON0 = uConValue;
    GPIO->rGPIOKDAT|=LEDALL_OFF;
}

/*************************************************************************
 * ************************跑马灯的实现函数*******************************
 * @ 通过控制连接LED的管脚的输出电平点亮和熄灭各个LED。
 * @ 逐个循环点亮各个LED。在每点亮一个后保持一定时间再熄灭它，接着
 * 点亮下一个LED，这样就形成了一个跑马灯的效果。
 * @ 这是一个需要改善的跑马灯程序，想想怎么优化这段代码。
 * ***********************************************************************/
void LedRun(void)
{
    GPIO->rGPIOKDAT |= LEDALL_OFF;
    while(1)
    {
        GPIO->rGPIOKDAT &= LED1_ON;
        LedDelay(1000);
        GPIO->rGPIOKDAT |= LEDALL_OFF;

        GPIO->rGPIOKDAT &= LED2_ON;
        LedDelay(1000);
        GPIO->rGPIOKDAT |= LEDALL_OFF;

        GPIO->rGPIOKDAT &= LED3_ON;
        LedDelay(1000);
        GPIO->rGPIOKDAT |= LEDALL_OFF;

        GPIO->rGPIOKDAT &= LED4_ON;
        LedDelay(1000);
        GPIO->rGPIOKDAT |= LEDALL_OFF;
    }
}

#endif

Button

电路图

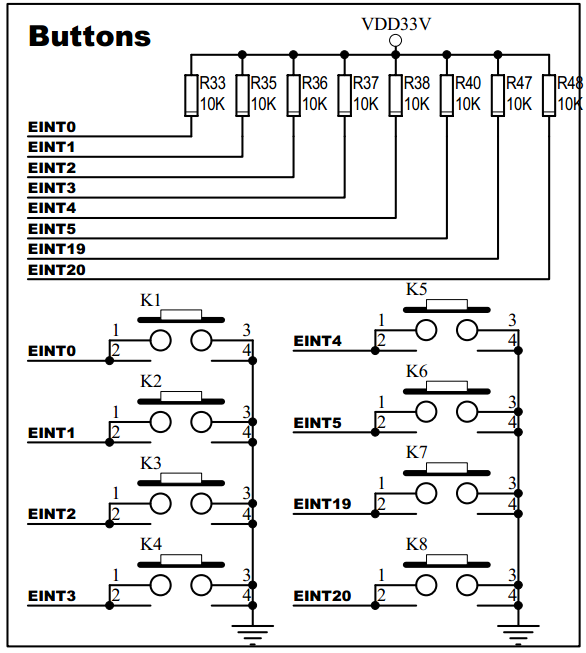

Tiny6410底板按键button18 分别连接到GPN05、GPL11、GPL12，电路图如下：
Button电路图

使用轮循方式实现按键识别

设置GPN03 为输入
轮循GPNDAT判断按键是否按下
GPN03 对应LED1~4,按键按下时，对应的LED会被点亮

led_io.h

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
#ifndef __KEY_IO__
#define __KEY_IO__
#include "module_cfg.h"
#ifdef KEY_IO

/**************Macro Definition**********/
#define LED1_ON   ~(1<<4)
#define LED2_ON   ~(1<<5)
#define LED3_ON   ~(1<<6)
#define LED4_ON   ~(1<<7)

#define LEDALL_OFF (0xf<<4)


/**************Declare Function**********/
void KeyIoPortInit(void);
unsigned int CheckKeyStat(void);
void KeyIoTest(void);

#endif

#endif

led_io.c

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
#include "module_cfg.h"
#ifdef KEY_IO
#include "def.h"
#include "key_io.h"
#include "gpio.h"
/*************************************************************************
 * ***************************按键IO初始化********************************
 * ***********************************************************************/
void KeyIoPortInit(void)
{
    GPIO->rGPIONCON&=0xffffff00;
}
/*************************************************************************
 * ***************************检测按键状态********************************
 * ***********************************************************************/
unsigned int CheckKeyStat(void)
 {
    if((GPIO->rGPIONDAT&0x1)==0)return 1;
        else if((GPIO->rGPIONDAT&0x2)==0)return 2;
            else if((GPIO->rGPIONDAT&0x4)==0)return 3;
                else if((GPIO->rGPIONDAT&0x8)==0)return 4;
    return 0;

 }

 /*************************************************************************
 * ***************************按键测试程序*********************************
 * ***********************************************************************/
 void KeyIoTest(void)
 {
    unsigned int j;
    while(1)
    {
        j=0;
        j=CheckKeyStat();
        switch(j)
        {
        case 1:GPIO->rGPIOKDAT |= LEDALL_OFF;GPIO->rGPIOKDAT &= LED1_ON;break;
        case 2:GPIO->rGPIOKDAT |= LEDALL_OFF;GPIO->rGPIOKDAT &= LED2_ON;break;
        case 3:GPIO->rGPIOKDAT |= LEDALL_OFF;GPIO->rGPIOKDAT &= LED3_ON;break;
        case 4:GPIO->rGPIOKDAT |= LEDALL_OFF;GPIO->rGPIOKDAT &= LED4_ON;break;
        default :break;
        }
    }
 }
#endif

使用中断方式识别按键

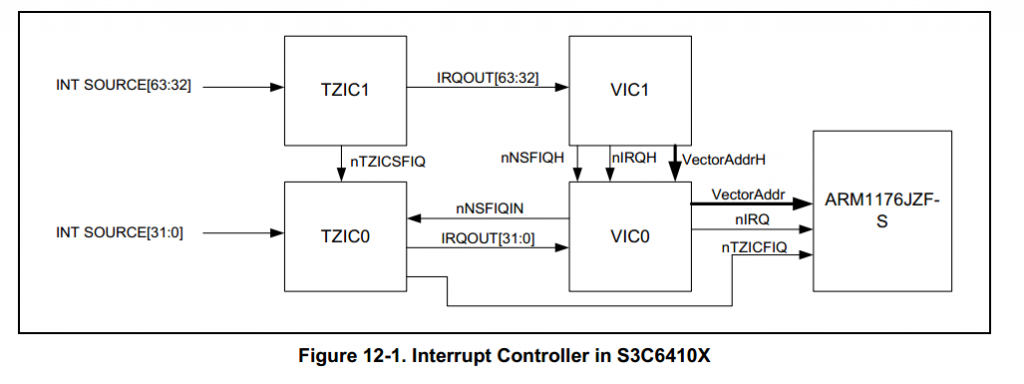

The interrupt controller in the S3C6410X is composed of 2 VIC’s (Vectored Interrupt Controller, ARM PrimeCell PL192) and 2 TZIC’s (TrustZone Interrupt Controller, SP890).
Two TZIC’s and VIC’s are daisy-chained to support up to 64 interrupt sources. （可以查看s3c6410芯片手册看到对应的64个中断源）
interrupt

GPN03对应中断源为INT_EINT0，该中断源对应了三个中断信号（External interrupt 0 ~ 3 ）
程序入口需要Enable VIC、Enable IRQ、Disable All INT（可查看Reference里面的main.c）
主要配置流程如下
设置GPN03为外部中断模式（GPNCON），禁止上拉下拉电阻（GPNPUD），配置中断方式为GPN0、1为低电平触发，GPN2、3为上升沿触发（EINT0CON0）
清除对应的中断悬起位（EINT0PEND）
配置中断服务地址程序（VIC0VECTADDR）
使能中断源（VIC0INTENABLE）
清除中断屏蔽位（EINT0MASK）
具体代码如下：

key_int.h

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
#ifndef __KEY_INT__
#define __KEY_INT__
#include "module_cfg.h"
#ifdef KEY_INT

/**************Macro Definition**********/
#define LED1_ON   ~(1<<4)
#define LED2_ON   ~(1<<5)
#define LED3_ON   ~(1<<6)
#define LED4_ON   ~(1<<7)
#define LEDALL_OFF (0xf<<4)

/**************Declare Function**********/
void KeyIntPortInit(void);
void __irq Key_Eint(void);
void KeyEintInit(void);
void EINT0ClrPend(u32 uEINT_No);
void EINT0DisMask(u32 uEINT_No);


#endif

#endif

key_int.c

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
#include "module_cfg.h"
#ifdef KEY_INT
#include "def.h"
#include "key_int.h"
#include "gpio.h"
#include "library.h"
/*************************************************************************
 ****************************按键IO初始化*********************************
 *************************************************************************/
void KeyIntPortInit(void)
{
    u32 i;

    //设置IO口为外部中断模式
    i=GPIO->rGPIONCON;
    i&=0xffffff00;
    i|=0x000000AA;
    GPIO->rGPIONCON=i;

    //禁止上拉下拉电阻
    GPIO->rGPIONPUD&=0Xfff0;

    //设置对应EINT的中断类型,EINT0/1为low level,EINT2/3为rising edge tiggered
    i=GPIO->rEINT0CON0;
    i&=0xffffff00;
    i|=0x00000040;
    GPIO->rEINT0CON0=i;

}
/*************************************************************************
 ***************************清除中断悬起位********************************
 *************************************************************************/
void EINT0ClrPend(u32 uEINT_No)
{
    GPIO->rEINT0PEND|=0x1<<uEINT_No;    //each bit is cleared by writing 1
}

/*************************************************************************
 ***************************清除中断屏蔽位********************************
 *************************************************************************/
void EINT0DisMask(u32 uEINT_No)
{
    GPIO->rEINT0MASK&=~(0x1<<uEINT_No); //write 0 to enable interrupt
}
/*************************************************************************
 **************************按键中断处理函数*******************************
 *************************************************************************/
void __irq Key_Eint(void)
{
    u32 i;

    //判断根据不同的按键引起的中断进行不同的处理,先清除对应中断悬起位，再点亮对应的LED
    i=GPIO->rEINT0PEND;
    if((i&0x1)!=0){EINT0ClrPend(0);GPIO->rGPIOKDAT |= LEDALL_OFF;GPIO->rGPIOKDAT &= LED1_ON;}
        else if((i&0x2)!=0){EINT0ClrPend(1);GPIO->rGPIOKDAT |= LEDALL_OFF;GPIO->rGPIOKDAT &= LED2_ON;}
            else if((i&0x4)!=0){EINT0ClrPend(2);GPIO->rGPIOKDAT |= LEDALL_OFF;GPIO->rGPIOKDAT &= LED3_ON;}
                else if((i&0x8)!=0){EINT0ClrPend(3);GPIO->rGPIOKDAT |= LEDALL_OFF;GPIO->rGPIOKDAT &= LED4_ON;}

    //清除rVIC0ADDR，该寄存器记录当前中断服务地址程序
    Outp32(rVIC0ADDR,0);
}
/*************************************************************************
 ****************************EINT初始化函数*******************************
 *************************************************************************/
void KeyEintInit(void)
{
    u32 i;
    KeyIntPortInit();
    EINT0ClrPend(0);
    EINT0ClrPend(1);
    EINT0ClrPend(2);
    EINT0ClrPend(3);

    //向 rVIC0VECTADDR 中写入对应的中断服务程序地址
    Outp32(rVIC0VECTADDR,(unsigned)Key_Eint);

    //使能中断源
    i=Inp32(rVIC0INTENABLE);
    i|=0x0000001;
    Outp32(rVIC0INTENABLE,i);

    EINT0DisMask(0);
    EINT0DisMask(1);
    EINT0DisMask(2);
    EINT0DisMask(3);
}
#endif

Timer

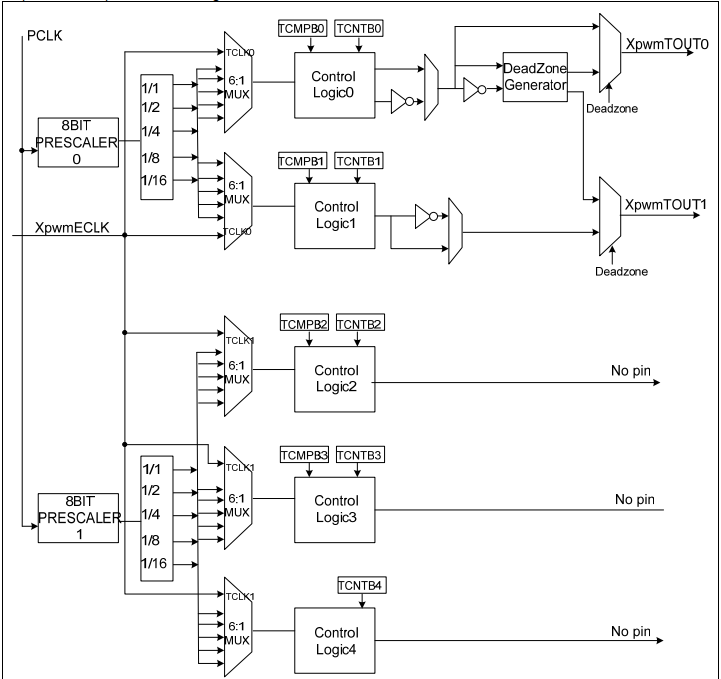

s3c6410定时器概述

The S3C6410X RISC microprocessor comprises of five 32-bit timers. These timers are used to generate internal interrupts to the ARM subsystem. In addition, Timers 0 and 1 include a PWM function (Pulse Width Modulation), which can drive an external I/O signal. The PWM for timer 0 and 1 have an optional dead-zone generator capability, which can be utilized to support a large current device. Timer 2, 3 and 4 are internal timers with no output pins.
Timer

一般的配置流程如下：

  • 程序入口需要Enable VIC、Enable IRQ、Disable All INT（可查看Reference里面的main.c）
  • 停止所有的定时器（TCON）
  • 配置定时器：获取g_PCLK，设置Prescaler（TCFG0），设置MUX（TCFG1），设置TCNTBn。（主要配置了定时器产生中断间隔，如果需要输出PWM，需要配置TCMPBn，同时使能PWM输出）
  • 清除中断悬起位（TINT_CSTAT）
  • 配置中断服务程序地址（VIC0VECTADDR+NUM_TIMERn*4）
  • 使能对应中断源（VIC0INTENABLE）
  • 清除中断屏蔽位（TINT_CSTAT）
  • 启动定时器（TCON）

timer.h

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
#ifndef __KEY_IO__
#define __KEY_IO__
#include "module_cfg.h"
#ifdef TIMER
#include "sfr6410.h"

/**************Macro Definition**********/
#define LED1_ON   ~(1<<4)
#define LED2_ON   ~(1<<5)
#define LED3_ON   ~(1<<6)
#define LED4_ON   ~(1<<7)
#define LED1_OFF   (1<<4)
#define LED2_OFF   (1<<5)
#define LED3_OFF   (1<<6)
#define LED4_OFF   (1<<7)
#define LEDALL_OFF (0xf<<4)

/**************Declare Function**********/
void __irq Timer_Eint(void);
void TimerStart(u32 uTimer_No);
void TimerClkInit(u32 uTimer_No,u32 ms);
void TimerInit(void);
void TimerClrPend(u32 uTimer_No);
void TimerDisMask(u32 uTimer_No);


/**************Enum TIMER ADDER**********/

#define     rTCFG0      (PWMTIMER_BASE+0x00)
#define     rTCFG1      (PWMTIMER_BASE+0x04)
#define     rTCON       (PWMTIMER_BASE+0x08)
#define     rTCNTB0     (PWMTIMER_BASE+0x0C)
#define     rTCMPB0     (PWMTIMER_BASE+0x10)
#define     rTCNTO0     (PWMTIMER_BASE+0x14)
#define     rTCNTB1     (PWMTIMER_BASE+0x18)
#define     rTCMPB1     (PWMTIMER_BASE+0x1C)
#define     rTCNTO1     (PWMTIMER_BASE+0x20)
#define     rTCNTB2     (PWMTIMER_BASE+0x24)
#define     rTCMPB2     (PWMTIMER_BASE+0x28)
#define     rTCNTO2     (PWMTIMER_BASE+0x2C)
#define     rTCNTB3     (PWMTIMER_BASE+0x30)
#define     rTCMPB3     (PWMTIMER_BASE+0x34)
#define     rTCNTO3     (PWMTIMER_BASE+0x38)
#define     rTCNTB4     (PWMTIMER_BASE+0x3C)
#define     rTCNTO4     (PWMTIMER_BASE+0x40)
#define     rTINT_CSTAT (PWMTIMER_BASE+0x44)


#endif

#endif

timer.c

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
#include "module_cfg.h"
#ifdef TIMER
#include "def.h"
#include "timer.h"
#include "gpio.h"
#include "library.h"
#include "sysc.h"

/*************************************************************************
 **************************TIMER中断处理函数******************************
 *************************************************************************/
static u32 Timer0Counter=1;
static u32 Timer1Counter=1;
void __irq Timer_Eint(void)
{
    u32 i;
    i = Inp32(rTINT_CSTAT);
    if (i&(1<<5))           //Timer0中断
    {
        TimerClrPend(0);
        if(Timer0Counter==1){GPIO->rGPIOKDAT&=LED1_ON;Timer0Counter=2;}
            else if(Timer0Counter==2){GPIO->rGPIOKDAT|=LED1_OFF;Timer0Counter=1;}
    }
    else if (i&(1<<6))      //Timer1中断
    {
        TimerClrPend(1);
        if(Timer1Counter==1){GPIO->rGPIOKDAT&=LED2_ON;Timer1Counter=2;}
            else if(Timer1Counter==2){GPIO->rGPIOKDAT|=LED2_OFF;Timer1Counter=1;}
    }

    //清除rVIC0ADDR，该寄存器按位记录哪个VIC0中断源曾发生了中断
    Outp32(rVIC0ADDR, 0);
}
/*************************************************************************
 ***************************清除中断悬起位********************************
 *************************************************************************/
void TimerClrPend(u32 uTimer_No)
{
    u32 i;
    i = Inp32(rTINT_CSTAT);
    i |= (0x1<<(5+uTimer_No));
    Outp32(rTINT_CSTAT,i);
}
/*************************************************************************
 ***************************清除中断屏蔽位********************************
 *************************************************************************/
void TimerDisMask(u32 uTimer_No)
{
    u32 i;
    i = Inp32(rTINT_CSTAT);
    i |= (0x1<<uTimer_No);      //write 1 to enable interrupt
    Outp32(rTINT_CSTAT,i);
}
/*************************************************************************
 ******************************TIMER启动********************************
 *************************************************************************/
void TimerStart(u32 uTimer_No)
{
    u32 i;
    //设置Timer控制寄存器为 自动装载、手动更新(第一次装载时需要)
    //然后开启定时器(同时清手动更新位)
    i = Inp32(rTCON);
    if (uTimer_No==0)
    {
        i = (i & ~0x1f) | 0xa;  //0b01010
        Outp32(rTCON,i);

        i = (i & ~0x1f) | 0x9;  //ob01001
        Outp32(rTCON,i);
    }
    else if(uTimer_No!=4)
        {
            uTimer_No++;
            i = (i & ~(0xf<<(uTimer_No*4))) | (0xa<<(uTimer_No*4));
            Outp32(rTCON,i);

            i = (i & ~(0xf<<(uTimer_No*4))) | (0x9<<(uTimer_No*4));
            Outp32(rTCON,i);
        }
        else if(uTimer_No==4)
            {
                uTimer_No++;
                i = (i & ~(0xf<<(uTimer_No*4))) | (0x6<<(uTimer_No*4));
                Outp32(rTCON,i);

                i = (i & ~(0xf<<(uTimer_No*4))) | (0x5<<(uTimer_No*4));
                Outp32(rTCON,i);
            }
}

/*************************************************************************
 ****************************配置TIMER时钟********************************
 *************************************************************************/
 void TimerClkInit(u32 uTimer_No,u32 ms)
 {
    u32 i;

    //用这个函数主要是获得g_PCLK的值
    SYSC_GetClkInform();

    //设置Prescaler为128
    i = Inp32(rTCFG0);
    if (uTimer_No<2)
        i = (i & 0xffffff00 )| 0x0000007f;
    else
        i = (i & 0xffff00ff )| 0x00007f00;
    Outp32(rTCFG0,i);

    //设置MUX为16，总共2048分频
    i = Inp32(rTCFG1);
    i = (i & ~(0xf<<(uTimer_No*4))) | (0x4<<(uTimer_No*4));
    Outp32(rTCFG1,i);

    //设置rTCNTBn，(g_PCLK>>11)/1000 算得的值是2048分频时1ms的计数值
    Outp32(rTCNTB0+0xc*uTimer_No, ((g_PCLK>>11)/1000)*ms);
 }

/*************************************************************************
 ******************************TIMER初始化********************************
 *************************************************************************/
 void TimerInit(void)
 {
    u32 i;

    //停止所有Timer
    Outp32(rTCON, 0);

    //配置定时器时钟
    TimerClkInit(0, 500);
    TimerClkInit(1, 1000);

    //清除中断悬起位
    TimerClrPend(0);
    TimerClrPend(1);

    //向rVIC0VECTADDR中写入对应中断服务程序的地址
    Outp32(rVIC0VECTADDR+NUM_TIMER0*4, (unsigned)Timer_Eint);
    Outp32(rVIC0VECTADDR+NUM_TIMER1*4, (unsigned)Timer_Eint);

    //使能对应中断源:
    i = Inp32(rVIC0INTENABLE);
    i |= (1<<NUM_TIMER0)|(1<<NUM_TIMER1);
    Outp32(rVIC0INTENABLE, i);

    //接触屏蔽
    TimerDisMask(0);
    TimerDisMask(1);

    //开启定时器
    TimerStart(0);
    TimerStart(1);
 }


#endif

Reference

该章节包含如下文件（描述可能比较模糊，大部分在s3c6410官方裸机测试代码里均可找到）：
main.c – 程序入口
inc.h – 包含的头文件
module_cfg.h – 模块配置
def.h – 类型定义
gpio.h – gpio地址
library.h – 地址操作宏定义
intc.h – 中断寄存器地址
intc.c – 屏蔽所有中断操作函数
sfr6410.h – SFR地址
sysc.h – 系统控制函数头文件
sysc.c – 系统控制函数
system.h
option.h

main.c

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
#include "inc.h"
int main(void)
{
    SYSTEM_EnableVIC();
    SYSTEM_EnableIRQ();
    INTC_Init();

    LedPortInit();
#if 0
    LedRun();
#endif

#if 0
    KeyIoPortInit();
    KeyIoTest();
#endif

#if 0
    KeyIntPortInit();
    KeyEintInit();
    while(1);
#endif

#if 1
    TimerInit();
    while(1);
#endif

}

inc.h

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
#ifndef __INC__
#define __INC__
/****************Including File*****************/
#include "module_cfg.h"
#include "system.h"

#ifdef LED
#include "led.h"
#endif

#ifdef KEY_IO
#include "key_io.h"
#endif

#ifdef KEY_INT
#include "key_int.h"
#endif

#ifdef TIMER
#include "timer.h"
#endif

#endif

module_cfg.h

1
2
3
4
5
6
7
8
9
10
11
12
13
#ifndef __MODULE_CFG__
#define __MOUDLE_CFG__
/****************Module Config*******************
if you open the define then the module is useful
and including .h file
*************************************************/
#define LED
#define KEY_IO
#define KEY_INT
#define TIMER


#endif

def.h

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
/**************************************************************************************
*   File Description : This file defines some types used commonly.
**************************************************************************************/

#ifndef __DEF_H__
#define __DEF_H__


// Type defines
typedef unsigned long           u32;
typedef unsigned short          u16;
typedef unsigned char           u8;

typedef signed long         s32;
typedef signed short            s16;
typedef signed char         s8;

#define FALSE               (0)
#define TRUE                (1)
#define false               (0)
#define true                (1)

#endif

gpio.h

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
/**************************************************************************************
*   File Description : This file declares prototypes of GPIO API funcions.
**************************************************************************************/

#ifndef __GPIO_H__
#define __GPIO_H__

#include "def.h"

typedef struct tag_GPIO_REGS
{
    u32 rGPIOACON;          //0x7F008000
    u32 rGPIOADAT;
    u32 rGPIOAPUD;
    u32 rGPIOACONSLP;
    u32 rGPIOAPUDSLP;
    u32 reserved1[3];

    u32 rGPIOBCON;          //0x7F008020
    u32 rGPIOBDAT;
    u32 rGPIOBPUD;
    u32 rGPIOBCONSLP;
    u32 rGPIOBPUDSLP;
    u32 reserved2[3];

    u32 rGPIOCCON;          //0x7F008040
    u32 rGPIOCDAT;
    u32 rGPIOCPUD;
    u32 rGPIOCCONSLP;
    u32 rGPIOCPUDSLP;
    u32 reserved3[3];

    u32 rGPIODCON;          //0x7F008060
    u32 rGPIODDAT;
    u32 rGPIODPUD;
    u32 rGPIODCONSLP;
    u32 rGPIODPUDSLP;
    u32 reserved4[3];

    u32 rGPIOECON;          //0x7F008080
    u32 rGPIOEDAT;
    u32 rGPIOEPUD;
    u32 rGPIOECONSLP;
    u32 rGPIOEPUDSLP;
    u32 reserved5[3];

    u32 rGPIOFCON;          //0x7F0080A0
    u32 rGPIOFDAT;
    u32 rGPIOFPUD;
    u32 rGPIOFCONSLP;
    u32 rGPIOFPUDSLP;
    u32 reserved6[3];

    u32 rGPIOGCON;          //0x7F0080C0
    u32 rGPIOGDAT;
    u32 rGPIOGPUD;
    u32 rGPIOGCONSLP;
    u32 rGPIOGPUDSLP;
    u32 reserved7[3];

    u32 rGPIOHCON0;         //0x7F0080E0
    u32 rGPIOHCON1;
    u32 rGPIOHDAT;
    u32 rGPIOHPUD;
    u32 rGPIOHCONSLP;
    u32 rGPIOHPUDSLP;
    u32 reserved8[2];

    u32 rGPIOICON;          //0x7F008100
    u32 rGPIOIDAT;
    u32 rGPIOIPUD;
    u32 rGPIOICONSLP;
    u32 rGPIOIPUDSLP;
    u32 reserved9[3];

    u32 rGPIOJCON;          //0x7F008120
    u32 rGPIOJDAT;
    u32 rGPIOJPUD;
    u32 rGPIOJCONSLP;
    u32 rGPIOJPUDSLP;
    u32 reserved10[3];

    u32 rGPIOOCON;          //0x7F008140
    u32 rGPIOODAT;
    u32 rGPIOOPUD;
    u32 rGPIOOCONSLP;
    u32 rGPIOOPUDSLP;
    u32 reserved11[3];

    u32 rGPIOPCON;          //0x7F008160
    u32 rGPIOPDAT;
    u32 rGPIOPPUD;
    u32 rGPIOPCONSLP;
    u32 rGPIOPPUDSLP;
    u32 reserved12[3];

    u32 rGPIOQCON;          //0x7F008180
    u32 rGPIOQDAT;
    u32 rGPIOQPUD;
    u32 rGPIOQCONSLP;
    u32 rGPIOQPUDSLP;
    u32 reserved13[3];

    u32 rSPCON;         //0x7F0081A0
    u32 reserved14[3];
    u32 rMEM0CONSTOP;       //0x7F0081B0
    u32 rMEM1CONSTOP;       //0x7F0081B4
    u32 reserved15[2];
    u32 rMEM0CONSLP0;       //0x7F0081C0
    u32 rMEM0CONSLP1;       //0x7F0081C4
    u32 rMEM1CONSLP;        //0x7F0081C8
    u32 reserved;
    u32 rMEM0DRVCON;        //0x7F0081D0
    u32 rMEM1DRVCON;        //0x7F0081D4
    u32 reserved16[10];

    u32 rEINT12CON;         //0x7f008200
    u32 rEINT34CON;         //0x7f008204
    u32 rEINT56CON;         //0x7f008208
    u32 rEINT78CON;         //0x7f00820C
    u32 rEINT9CON;          //0x7f008210
    u32 reserved17[3];

    u32 rEINT12FLTCON;      //0x7f008220
    u32 rEINT34FLTCON;      //0x7f008224
    u32 rEINT56FLTCON;      //0x7f008228
    u32 rEINT78FLTCON;      //0x7f00822C
    u32 rEINT9FLTCON;       //0x7f008230
    u32 reserved18[3];

    u32 rEINT12MASK;        //0x7f008240
    u32 rEINT34MASK;        //0x7f008244
    u32 rEINT56MASK;        //0x7f008248
    u32 rEINT78MASK;        //0x7f00824C
    u32 rEINT9MASK;         //0x7f008250
    u32 reserved19[3];

    u32 rEINT12PEND;        //0x7f008260
    u32 rEINT34PEND;        //0x7f008264
    u32 rEINT56PEND;        //0x7f008268
    u32 rEINT78PEND;        //0x7f00826C
    u32 rEINT9PEND;         //0x7f008270
    u32 reserved20[3];

    u32 rPRIORITY;          //0x7f008280
    u32 rSERVICE;           //0x7f008284
    u32 rSERVICEPEND;       //0x7f008288
    u32 reserved21;

    u32 reserved22[348];

    u32 rGPIOKCON0;         //0x7f008800
    u32 rGPIOKCON1;         //0x7f008804
    u32 rGPIOKDAT;          //0x7f008808
    u32 rGPIOKPUD;          //0x7f00880c

    u32 rGPIOLCON0;         //0x7f008810
    u32 rGPIOLCON1;         //0x7f008814
    u32 rGPIOLDAT;          //0x7f008818
    u32 rGPIOLPUD;          //0x7f00881c

    u32 rGPIOMCON;          //0x7f008820
    u32 rGPIOMDAT;          //0x7f008824
    u32 rGPIOMPUD;          //0x7f008828
    u32 reserved23;

    u32 rGPIONCON;          //0x7f008830
    u32 rGPIONDAT;          //0x7f008834
    u32 rGPIONPUD;          //0x7f008838
    u32 reserved24;

    u32 reserved25[16];

    u32 rSPCONSLP;          //0x7f008880

    u32 reserved26[31];

    u32 rEINT0CON0;         //0x7f008900
    u32 rEINT0CON1;         //0x7f008904
    u32 reserved27[2];

    u32 rEINT0FLTCON0;      //0x7f008910
    u32 rEINT0FLTCON1;      //0x7f008914
    u32 rEINT0FLTCON2;      //0x7f008918
    u32 rEINT0FLTCON3;      //0x7f00891c
    u32 rEINT0MASK;         //0x7f008920
    u32 rEINT0PEND;         //0x7f008924
    u32 reserved28[2];
    u32 rSLPEN;         //0x7f008930

}
oGPIO_REGS;

#ifndef GPIO_BASE
#define GPIO_BASE           (0x7F008000)
#endif

#ifndef GPIO
#define GPIO                (( volatile oGPIO_REGS *)GPIO_BASE)
#endif

#endif

library.h

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
/**************************************************************************************
*   File Description : This file defines the register access function
*                       and declares prototypes of library funcions
**************************************************************************************/
#ifndef __LIBRARY_H__
#define __LIBRARY_H__

#include "def.h"

#define Outp32(addr, data)  (*(volatile u32 *)(addr) = (data))
#define Outp16(addr, data)  (*(volatile u16 *)(addr) = (data))
#define Outp8(addr, data)   (*(volatile u8 *)(addr) = (data))
#define Inp32(addr)         (*(volatile u32 *)(addr))
#define Inp16(addr)         (*(volatile u16 *)(addr))
#define Inp8(addr)          (*(volatile u8 *)(addr))



#endif /*__LIBRARY_H__*/

intc.h

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
/**************************************************************************************
*   File Description : This file declares prototypes of interrupt controller API funcions.
**************************************************************************************/

#ifndef __INTC_H__
#define __INTC_H__

#include "def.h"
#include "sfr6410.h"

void INTC_Init(void);
void INTC_ClearVectAddr(void);

#define INT_LIMIT               (64)

//INT NUM - VIC0
#define NUM_EINT0               (0)
#define NUM_EINT1               (1)
#define NUM_RTC_TIC             (2)
#define NUM_CAMIF_C             (3)
#define NUM_CAMIF_P             (4)
#define NUM_I2C1                (5)
#define NUM_I2S                 (6)

#define NUM_3D                  (8)
#define NUM_POST0               (9)
#define NUM_ROTATOR             (10)
#define NUM_2D                  (11)
#define NUM_TVENC               (12)
#define NUM_SCALER              (13)
#define NUM_BATF                (14)
#define NUM_JPEG                (15)
#define NUM_MFC                 (16)
#define NUM_SDMA0               (17)
#define NUM_SDMA1               (18)
#define NUM_ARM_DMAERR              (19)
#define NUM_ARM_DMA             (20)
#define NUM_ARM_DMAS                (21)
#define NUM_KEYPAD              (22)
#define NUM_TIMER0              (23)
#define NUM_TIMER1              (24)
#define NUM_TIMER2              (25)
#define NUM_WDT                 (26)
#define NUM_TIMER3              (27)
#define NUM_TIMER4              (28)
#define NUM_LCD0                (29)
#define NUM_LCD1                (30)
#define NUM_LCD2                (31)

//INT NUM - VIC1
#define NUM_EINT2               (32+0)
#define NUM_EINT3               (32+1)
#define NUM_PCM0                (32+2)
#define NUM_PCM1                (32+3)
#define NUM_AC97                (32+4)
#define NUM_UART0               (32+5)
#define NUM_UART1               (32+6)
#define NUM_UART2               (32+7)
#define NUM_UART3               (32+8)
#define NUM_DMA0                (32+9)
#define NUM_DMA1                (32+10)
#define NUM_ONENAND0                (32+11)
#define NUM_ONENAND1                (32+12)
#define NUM_NFC                 (32+13)
#define NUM_CFC                 (32+14)
#define NUM_UHOST               (32+15)
#define NUM_SPI0                (32+16)
#define NUM_SPI1                (32+17)
#define NUM_IIC                 (32+18)
#define NUM_HSItx               (32+19)
#define NUM_HSIrx               (32+20)
#define NUM_EINTGroup               (32+21)
#define NUM_MSM                 (32+22)
#define NUM_HOSTIF              (32+23)
#define NUM_HSMMC0              (32+24)
#define NUM_HSMMC1              (32+25)
#define NUM_OTG                 (32+26)
#define NUM_IRDA                (32+27)
#define NUM_RTC_ALARM               (32+28)
#define NUM_SEC                 (32+29)
#define NUM_PENDNUP             (32+30)
#define NUM_ADC                 (32+31)
#define NUM_PMU                 (32+32)

// VIC0
#define rVIC0IRQSTATUS          (VIC0_BASE + 0x00)
#define rVIC0FIQSTATUS          (VIC0_BASE + 0x04)
#define rVIC0RAWINTR            (VIC0_BASE + 0x08)
#define rVIC0INTSELECT          (VIC0_BASE + 0x0c)
#define rVIC0INTENABLE          (VIC0_BASE + 0x10)
#define rVIC0INTENCLEAR         (VIC0_BASE + 0x14)
#define rVIC0SOFTINT            (VIC0_BASE + 0x18)
#define rVIC0SOFTINTCLEAR       (VIC0_BASE + 0x1c)
#define rVIC0PROTECTION         (VIC0_BASE + 0x20)
#define rVIC0SWPRIORITYMASK     (VIC0_BASE + 0x24)
#define rVIC0PRIORITYDAISY      (VIC0_BASE + 0x28)

#define rVIC0VECTADDR           (VIC0_BASE + 0x100)

#define rVIC0VECPRIORITY        (VIC0_BASE + 0x200)

#define rVIC0ADDR           (VIC0_BASE + 0xf00)
#define rVIC0PERID0         (VIC0_BASE + 0xfe0)
#define rVIC0PERID1         (VIC0_BASE + 0xfe4)
#define rVIC0PERID2         (VIC0_BASE + 0xfe8)
#define rVIC0PERID3         (VIC0_BASE + 0xfec)
#define rVIC0PCELLID0           (VIC0_BASE + 0xff0)
#define rVIC0PCELLID1           (VIC0_BASE + 0xff4)
#define rVIC0PCELLID2           (VIC0_BASE + 0xff8)
#define rVIC0PCELLID3           (VIC0_BASE + 0xffc)

// VIC1
#define rVIC1IRQSTATUS          (VIC1_BASE + 0x00)
#define rVIC1FIQSTATUS          (VIC1_BASE + 0x04)
#define rVIC1RAWINTR            (VIC1_BASE + 0x08)
#define rVIC1INTSELECT          (VIC1_BASE + 0x0c)
#define rVIC1INTENABLE          (VIC1_BASE + 0x10)
#define rVIC1INTENCLEAR         (VIC1_BASE + 0x14)
#define rVIC1SOFTINT            (VIC1_BASE + 0x18)
#define rVIC1SOFTINTCLEAR       (VIC1_BASE + 0x1c)
#define rVIC1PROTECTION         (VIC1_BASE + 0x20)
#define rVIC1SWPRIORITYMASK     (VIC1_BASE + 0x24)
#define rVIC1PRIORITYDAISY      (VIC1_BASE + 0x28)

#define rVIC1VECTADDR           (VIC1_BASE + 0x100)

#define rVIC1VECPRIORITY        (VIC1_BASE + 0x200)

#define rVIC1ADDR           (VIC1_BASE + 0xf00)
#define rVIC1PERID0         (VIC1_BASE + 0xfe0)
#define rVIC1PERID1         (VIC1_BASE + 0xfe4)
#define rVIC1PERID2         (VIC1_BASE + 0xfe8)
#define rVIC1PERID3         (VIC1_BASE + 0xfec)
#define rVIC1PCELLID0           (VIC1_BASE + 0xff0)
#define rVIC1PCELLID1           (VIC1_BASE + 0xff4)
#define rVIC1PCELLID2           (VIC1_BASE + 0xff8)
#define rVIC1PCELLID3           (VIC1_BASE + 0xffc)



#endif

intc.c

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
/**************************************************************************************
*   File Description : This file implements the API functons for interrupt controller.
**************************************************************************************/

#include "library.h"
#include "intc.h"

// Function Description : This function initializes interrupt controller
void INTC_Init(void)
{
#if (VIC_MODE==0)
    u32 i;

    for(i=0;i<32;i++)
        Outp32(rVIC0VECTADDR+4*i, i);

    for(i=0;i<32;i++)
        Outp32(rVIC1VECTADDR+4*i, i+32);
#endif
    Outp32(rVIC0INTENCLEAR, 0xffffffff);
    Outp32(rVIC1INTENCLEAR, 0xffffffff);

    Outp32(rVIC0INTSELECT, 0x0);
    Outp32(rVIC1INTSELECT, 0x0);

    INTC_ClearVectAddr();

    return;
}


// Function Description : This function clears the vector address register
void INTC_ClearVectAddr(void)
{
    Outp32(rVIC0ADDR, 0);
    Outp32(rVIC1ADDR, 0);

    return;
}

sfr6410.h

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
/**************************************************************************************
*   File Description : This file defines SFR base addresses.
**************************************************************************************/


#ifndef __sfr6410_H__
#define __sfr6410_H__

#include "def.h"

////
//AHB_SMC
//
//SMC
#define SROM_BASE               (0x70000000)    //SROM
#define ONENAND0_BASE               (0x70100000)    //OneNAND
#define ONENAND1_BASE               (0x70180000)    //OneNAND
#define NFCON_BASE              (0x70200000)    //Nand Flash
#define CFCON_BASE              (0x70300000)    //CF


////
//TZIC
//
//TZIC
#define TZIC0_BASE              (0x71000000)
#define TZIC1_BASE              (0x71100000)


////
//VIC
//
//VIC
#define VIC0_BASE               (0x71200000)
#define VIC1_BASE               (0x71300000)


////
//3D
//
//3D
#define FIMG_BASE                   (0x72000000)




////
//AHB_ETB
//
//ETB
#define ETBMEM_BASE             (0x73000000)
#define ETBSFR_BASE             (0x73100000)


////
//AHB_T
//
//HOST i/f
#define HOSTIF_SFR_BASE             (0x74000000)
#define DPSRAM_BASE             (0x74100000)
#define MODEMIF_BASE                (0x74108000)
//USB HOST
#define USBHOST_BASE                (0x74300000)
#define MDPIF_BASE              (0x74400000)


////
//AHB_M
//
//DMA
#define DMA0_BASE               (0x75000000)
#define DMA1_BASE               (0x75100000)


////
//AHB_P
//
// 2D
#define G2D_BASE                (0x76100000)
//TV
#define TVENC_BASE              (0x76200000)
#define TVSCALER_BASE               (0X76300000)


////
//AHB_F
//
//POST
#define POST0_BASE              (0x77000000)
//LCD
#define LCD_BASE                (0x77100000)
//ROTATOR
#define ROTATOR_BASE                (0x77200000)


////
//AHB_I
//
//CAMERA I/F
#define CAMERA_BASE             (0x78000000)
//JPEG
#define JPEG_BASE               (0x78800000)


////
//AHB_X
//
//USB OTG
#define USBOTG_LINK_BASE            (0x7C000000)
#define USBOTG_PHY_BASE             (0x7C100000)
//HS MMC
#define HSMMC0_BASE             (0x7C200000)
#define HSMMC1_BASE             (0x7C300000)
#define HSMMC2_BASE             (0x7C400000)


////
//AHB_S
//
//D&I Security Sub System Base
#define DnI_BASE                (0x7D000000)
#define AES_RX_BASE             (0x7D100000)
#define DES_RX_BASE             (0x7D200000)
#define HASH_RX_BASE                (0x7D300000)
#define RX_SFR_BASE             (0x7D400000)
#define AES_TX_BASE             (0x7D500000)
#define DES_TX_BASE             (0x7D600000)
#define HASH_TX_BASE                (0x7D700000)
#define TX_SFR_BASE             (0x7D800000)
#define RX_FIFO_BASE                (0x7D900000)
#define TX_FIFO_BASE                (0x7DA00000)
// SDMA Controller
#define SDMA0_BASE              (0x7DB00000)
#define SDMA1_BASE              (0x7DC00000)


////
//APB0
//
//DMC
#define DMC0_BASE               (0x7E000000)
#define DMC1_BASE               (0x7E001000)
//MFC
#define MFC_BASE                (0x7E002000)
//WDT
#define WDT_BASE                (0x7E004000)
//RTC
#define RTC_BASE                (0x7E005000)
//HSI
#define HSITX_BASE              (0x7E006000)
#define HSIRX_BASE              (0x7E007000)
//KEYPAD I/F
#define KEYPADIF_BASE               (0x7E00A000)
//ADC TS
#define ADCTS_BASE              (0x7E00B000)
//ETM
#define ETM_BASE                (0x7E00C000)
//KEY
#define KEY_BASE                (0x7E00D000)
//Chip ID
#define CHIPID_BASE             (0x7E00E000)
//SYSCON
#define SYSCON_BASE             (0x7E00F000)


////
//APB1
//
//TZPC
#define TZPC_BASE               (0x7F000000)
//AC97
#define AC97_BASE               (0x7F001000)
//I2S
#define I2S0_BASE               (0x7F002000)
#define I2S1_BASE               (0x7F003000)
//I2C (Channel0, 1 Added by SOP on 2008.03.01)
#define I2C0_BASE               (0x7F004000)
#define I2C1_BASE               (0x7F00F000)
//UART
#define UART_BASE               (0x7F005000)
//PWM TIMER
#define PWMTIMER_BASE               (0x7F006000)
//IRDA
#define IRDA_BASE               (0x7F007000)
//GPIO
#define GPIO_BASE               (0x7F008000)
//PCM
#define PCM0_BASE               (0x7F009000)
#define PCM1_BASE               (0x7F00A000)
//SPI
#define SPI0_BASE               (0x7F00B000)
#define SPI1_BASE               (0x7F00C000)
//I2S MULTI
#define I2SMULTI_BASE               (0X7F00D00)

//GIB
#define GIB_BASE                (0x7F00E000)



#endif

sysc.h

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
/**************************************************************************************
*   File Description : This file declares prototypes of system funcions.
**************************************************************************************/

#ifndef __SYSTEM_H__
#define __SYSTEM_H__

#include "def.h"

extern u8   g_System_Revision, g_System_Pass;
extern u32  g_APLL, g_MPLL, g_ARMCLK, g_HCLKx2, g_HCLK, g_PCLK;

// Camera module define by jungil 01.31
#define CAM_OV7620          1
#define CAM_S5X433          2
#define CAM_AU70H           3
#define CAM_S5X3A1          4
#define CAM_S5K3AA          5
#define CAM_S5K3BA          6
#define CAM_S5K4AAF         7
#define CAM_LCD_INTERLACE   8
#define CAM_LCD_PROGRESSIVE 9
#define CAM_A3AFX_VGA       10

#define CAM_MODEL           CAM_S5K3BA
//----------------------------------------

void SYSTEM_EnableVIC(void);
void SYSTEM_DisableVIC(void);
void SYSTEM_EnableIRQ(void);
void SYSTEM_DisableIRQ(void);
void SYSTEM_EnableFIQ(void);
void SYSTEM_DisableFIQ(void);

void SYSTEM_InitException( void);
void MMU_WaitForInterrupt(void);
void Stop_WFI_Test(void);
void Stop_WFI_Test1(void);

void SYSTEM_EnableBP(void);
void SYSTEM_EnableICache(void);
void SYSTEM_DisableICache(void);
void SYSTEM_EnableDCache(void);
void SYSTEM_DisableDCache(void);
void SYSTEM_InvalidateEntireICache(void);
void SYSTEM_InvalidateEntireDCache(void);
void SYSTEM_InvalidateBothCache(void);
void SYSTEM_CleanEntireDCache(void);
void SYSTEM_CleanInvalidateEntireDCache(void);
void SYSTEM_EnableMMU(void);
void SYSTEM_DisableMMU(void);
void SYSTEM_InvalidateTLB(void);
void SYSTEM_SetTTBase(u32);
void SYSTEM_SetDomain(u32);
void SYSTEM_SetFCSEPID(u32);
void SYSTEM_EnableAlignFault(void);
void SYSTEM_DisableAlignFault(void);
u32 SYSTEM_ReadDFSR(void);
u32 SYSTEM_ReadIFSR(void);
u32 SYSTEM_ReadFAR(void);
void SYSTEM_InitMmu(void);

void MEMCOPY_TEST(void);
void MEMCOPY_TEST0(void);
void MEMCOPY8 (u32,u32, u32 );
void MEMWRITE4 (u32, u32, u32 , u32); // addr, size, data1, data2


#endif

sysc.c

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
/**************************************************************************************
*
*   Project Name : S3C6410 Validation
*
*   Copyright 2006 by Samsung Electronics, Inc.
*   All rights reserved.
*
*   Project Description :
*       This software is only for validating functions of the S3C6410.
*       Anybody can use this software without our permission.
*
*--------------------------------------------------------------------------------------
*
*   File Name : sysc.c
*
*   File Description : This file implements the API functons for system controller.
*
*   Author : Haksoo,Kim
*   Dept. : AP Development Team
*   Created Date : 2006/11/08
*   Version : 0.1
*
*   History
*   - Created(Haksoo,Kim 2006/11/08)
*   - Added sfr (Wonjoon.Jang 2007/01/08)
*
**************************************************************************************/

#include "library.h"
#include "sfr6410.h"
#include "system.h"
#include "option.h"

#include "gpio.h"
#include "sysc.h"
#include "intc.h"

#define dprintf UART_Printf
//#define dprintf


//
#define rAPLL_LOCK          (SYSCON_BASE+0x000)
#define rMPLL_LOCK          (SYSCON_BASE+0x004)
#define rEPLL_LOCK          (SYSCON_BASE+0x008)
#define rAPLL_CON           (SYSCON_BASE+0x00c)
#define rMPLL_CON           (SYSCON_BASE+0x010)
#define rEPLL_CON0          (SYSCON_BASE+0x014)
#define rEPLL_CON1          (SYSCON_BASE+0x018)
#define rCLK_SRC            (SYSCON_BASE+0x01c)
#define rCLK_SRC2           (SYSCON_BASE+0x10c)
#define rCLK_DIV0           (SYSCON_BASE+0x020)
#define rCLK_DIV1           (SYSCON_BASE+0x024)
#define rCLK_DIV2           (SYSCON_BASE+0x028)
#define rCLK_OUT            (SYSCON_BASE+0x02c)
#define rHCLK_GATE          (SYSCON_BASE+0x030)
#define rPCLK_GATE          (SYSCON_BASE+0x034)
#define rSCLK_GATE          (SYSCON_BASE+0x038)
#define rMEM0_CLK_GATE          (SYSCON_BASE+0x03c)

//
#define rAHB_CON0           (SYSCON_BASE+0x100)
#define rAHB_CON1           (SYSCON_BASE+0x104)
#define rAHB_CON2           (SYSCON_BASE+0x108)
#define rSDMA_SEL           (SYSCON_BASE+0x110)
#define rSW_RST             (SYSCON_BASE+0x114)
#define rSYS_ID             (SYSCON_BASE+0x118)
#define rMEM_SYS_CFG            (SYSCON_BASE+0x120)
#define rQOS_OVERRIDE0          (SYSCON_BASE+0x124)
#define rQOS_OVERRIDE1          (SYSCON_BASE+0x128)
#define rMEM_CFG_STAT           (SYSCON_BASE+0x12c)
//
#define rPWR_CFG            (SYSCON_BASE+0x804)
#define rEINT_MASK          (SYSCON_BASE+0x808)
#define rNORMAL_CFG         (SYSCON_BASE+0x810)
#define rSTOP_CFG           (SYSCON_BASE+0x814)
#define rSLEEP_CFG          (SYSCON_BASE+0x818)
#define rSTOP_MEM_CFG           (SYSCON_BASE+0x81C)
#define rOSC_FREQ           (SYSCON_BASE+0x820)
#define rOSC_STABLE         (SYSCON_BASE+0x824)
#define rPWR_STABLE         (SYSCON_BASE+0x828)
#define rFPC_STABLE         (SYSCON_BASE+0x82c)
#define rMTC_STABLE         (SYSCON_BASE+0x830)
#define rBUS_CACHEABLE_CON      (SYSCON_BASE+0x838)

//
#define rOTHERS             (SYSCON_BASE+0x900)
#define rRST_STAT           (SYSCON_BASE+0x904)
#define rWAKEUP_STAT            (SYSCON_BASE+0x908)
#define rBLK_PWR_STAT           (SYSCON_BASE+0x90c)
#define rINFORM0            (SYSCON_BASE+0xA00)
#define rINFORM1            (SYSCON_BASE+0xA04)
#define rINFORM2            (SYSCON_BASE+0xA08)
#define rINFORM3            (SYSCON_BASE+0xA0c)
#define rINFORM4            (SYSCON_BASE+0xA10)
#define rINFORM5            (SYSCON_BASE+0xA14)
#define rINFORM6            (SYSCON_BASE+0xA18)
#define rINFORM7            (SYSCON_BASE+0xA1c)


u8  g_System_Revision, g_System_Pass, g_SYNCACK;
u32 g_APLL, g_MPLL, g_ARMCLK, g_HCLKx2, g_HCLK, g_PCLK;

//////////
// Function Name : SYSC_GetClkInform
// Function Description : This function gets common clock information
// Input : NONE
// Output : NONE
// Version :
void SYSC_GetClkInform( void)
{
    u8 muxApll, muxMpll, muxSync;
    u8 divApll, divHclkx2, divHclk, divPclk;
    u16 pllM, pllP, pllS;
    u32 temp;

    ////
    // clock division ratio
    temp = Inp32(rCLK_DIV0);
    divApll = temp & 0xf;
    divHclkx2 = (temp>>9) & 0x7;
    divHclk = (temp>>8) & 0x1;
    divPclk = (temp>>12) & 0xf;

    ////
    // Operating Mode
    temp = Inp32(rOTHERS);
    temp = (temp>>8)&0xf;
    if(temp)
    {
        g_SYNCACK = 1;
    }
    else
    {
        g_SYNCACK = 0;
    }

    ////
    // ARMCLK
    muxApll = Inp32(rCLK_SRC) & 0x1;
    if(muxApll) //FOUT
    {
        temp = Inp32(rAPLL_CON);
        pllM = (temp>>16)&0x3ff;
        pllP = (temp>>8)&0x3f;
        pllS = (temp&0x7);

        g_APLL = ((FIN>>pllS)/pllP)*pllM;
    }
    else    //FIN
    {
        g_APLL = FIN;
    }

    g_ARMCLK = g_APLL/(divApll+1);

    ////
    // HCLK
    muxSync = (Inp32(rOTHERS)>>7) & 0x1;
    if(muxSync) //synchronous mode
    {
        g_HCLKx2 = g_APLL/(divHclkx2+1);

        temp = Inp32(rMPLL_CON);
        pllM = (temp>>16)&0x3ff;
        pllP = (temp>>8)&0x3f;
        pllS = (temp&0x7);

        g_MPLL = ((FIN>>pllS)/pllP)*pllM;
    }
    else
    {
        muxMpll = (Inp32(rCLK_SRC)>>1) & 0x1;
        if(muxMpll) //FOUT
        {
            temp = Inp32(rMPLL_CON);
            pllM = (temp>>16)&0x3ff;
            pllP = (temp>>8)&0x3f;
            pllS = (temp&0x7);

            g_MPLL = ((FIN>>pllS)/pllP)*pllM;
        }
        else    //FIN
        {
            g_MPLL = FIN;
        }
        g_HCLKx2 = g_MPLL/(divHclkx2+1);
    }

    g_HCLK = g_HCLKx2/(divHclk+1);

    ////
    // PCLK
    g_PCLK = g_HCLKx2/(divPclk+1);

    return;

}

system.h

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
/**************************************************************************************
*   File Description : This file declares prototypes of system funcions.
**************************************************************************************/

#ifndef __SYSTEM_H__
#define __SYSTEM_H__

#include "def.h"

extern u8   g_System_Revision, g_System_Pass;
extern u32  g_APLL, g_MPLL, g_ARMCLK, g_HCLKx2, g_HCLK, g_PCLK;

// Camera module define by jungil 01.31
#define CAM_OV7620          1
#define CAM_S5X433          2
#define CAM_AU70H           3
#define CAM_S5X3A1          4
#define CAM_S5K3AA          5
#define CAM_S5K3BA          6
#define CAM_S5K4AAF         7
#define CAM_LCD_INTERLACE       8
#define CAM_LCD_PROGRESSIVE     9
#define CAM_A3AFX_VGA           10

#define CAM_MODEL           CAM_S5K3BA
//----------------------------------------

void SYSTEM_EnableVIC(void);
void SYSTEM_DisableVIC(void);
void SYSTEM_EnableIRQ(void);
void SYSTEM_DisableIRQ(void);
void SYSTEM_EnableFIQ(void);
void SYSTEM_DisableFIQ(void);

void SYSTEM_InitException( void);
void MMU_WaitForInterrupt(void);
void Stop_WFI_Test(void);
void Stop_WFI_Test1(void);

void SYSTEM_EnableBP(void);
void SYSTEM_EnableICache(void);
void SYSTEM_DisableICache(void);
void SYSTEM_EnableDCache(void);
void SYSTEM_DisableDCache(void);
void SYSTEM_InvalidateEntireICache(void);
void SYSTEM_InvalidateEntireDCache(void);
void SYSTEM_InvalidateBothCache(void);
void SYSTEM_CleanEntireDCache(void);
void SYSTEM_CleanInvalidateEntireDCache(void);
void SYSTEM_EnableMMU(void);
void SYSTEM_DisableMMU(void);
void SYSTEM_InvalidateTLB(void);
void SYSTEM_SetTTBase(u32);
void SYSTEM_SetDomain(u32);
void SYSTEM_SetFCSEPID(u32);
void SYSTEM_EnableAlignFault(void);
void SYSTEM_DisableAlignFault(void);
u32 SYSTEM_ReadDFSR(void);
u32 SYSTEM_ReadIFSR(void);
u32 SYSTEM_ReadFAR(void);
void SYSTEM_InitMmu(void);

void MEMCOPY_TEST(void);
void MEMCOPY_TEST0(void);
void MEMCOPY8 (u32,u32, u32 );
void MEMWRITE4 (u32, u32, u32 , u32); // addr, size, data1, data2


#endif

option.h

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
/**************************************************************************************
*
*   Project Name : S3C6410 Validation
*
*   Copyright 2006 by Samsung Electronics, Inc.
*   All rights reserved.
*
*   Project Description :
*       This software is only for validating functions of the S3C6410.
*       Anybody can use this software without our permission.
*
*--------------------------------------------------------------------------------------
*
*   File Name : option.h
*
*   File Description : This file defines basic setting and configuration.
*
*   Author : Haksoo,Kim
*   Dept. : AP Development Team
*   Created Date : 2006/11/08
*   Version : 0.1
*
*   History
*   - Created(Haksoo,Kim 2006/11/08)
*
**************************************************************************************/

#ifndef __OPTION_H__
#define __OPTION_H__

#ifdef __cplusplus
extern "C" {
#endif

#include "def.h"

// semi-hosting
#define SEMIHOSTING                 (false)

#define FIN                     12000000

#define DMC0                        (FALSE)
#define DMC1                        (!(DMC0))
#if (DMC0)
#define _DRAM_BaseAddress           0x40000000
#elif (DMC1)
#define _DRAM_BaseAddress           0x50000000
#endif

#define _DRAM0_BaseAddress          0x40000000

#define _SMC_BaseAddress            0x10000000

#define _Exception_Vector           (_DRAM_BaseAddress+0x07ffff00)
#define _MMUTT_BaseAddress          (_DRAM_BaseAddress+0x07ff8000)
#define DefaultDownloadAddress          (_DRAM_BaseAddress+0x00200000)

//rb1004
#define     CODEC_MEM_ST            (_DRAM_BaseAddress+0x01000000)
#define     CODEC_MEM_LMT           (_DRAM_BaseAddress+0x02000000)

// Derrick
#define SMDK_MODE               0
#define ASB_MODE                1
#define TEST_CODE_MODE              ASB_MODE

#define ASB_ONBL_ADDRESS        (_DRAM_BaseAddress+0x01000000)
#define ASB_BL2_ADDRESS         (_DRAM_BaseAddress+0x01000800)
#define ASB_FW_ADDRESS          (_DRAM_BaseAddress+0x01040000)
#define ASB_MFC1_ADDRESS        (_DRAM_BaseAddress+0x01A00000)
#define ASB_MFC2_ADDRESS        (_DRAM_BaseAddress+0x01A20000)
#define ASB_MFC3_ADDRESS        (_DRAM_BaseAddress+0x01D20000)
#define ASB_BIN1_ADDRESS        (_DRAM_BaseAddress+0x02120000)
#define ASB_BIN2_ADDRESS        (_DRAM_BaseAddress+0x05000000)
#ifdef __cplusplus
}
#endif

#endif /*__OPTION_H__*/
坚持原创技术分享，您的支持将鼓励我继续创作！.
